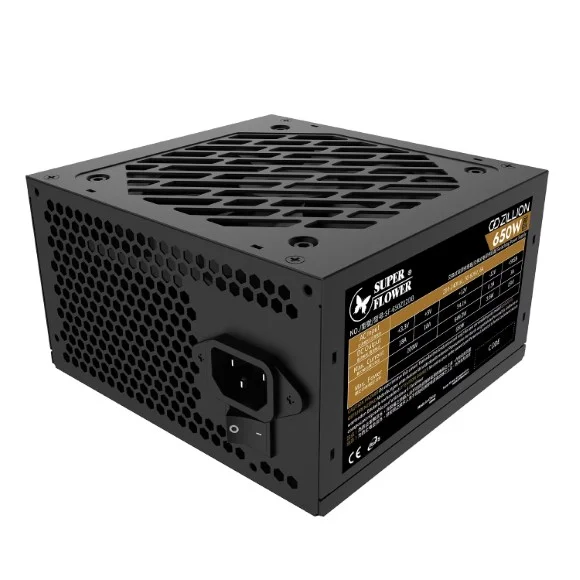

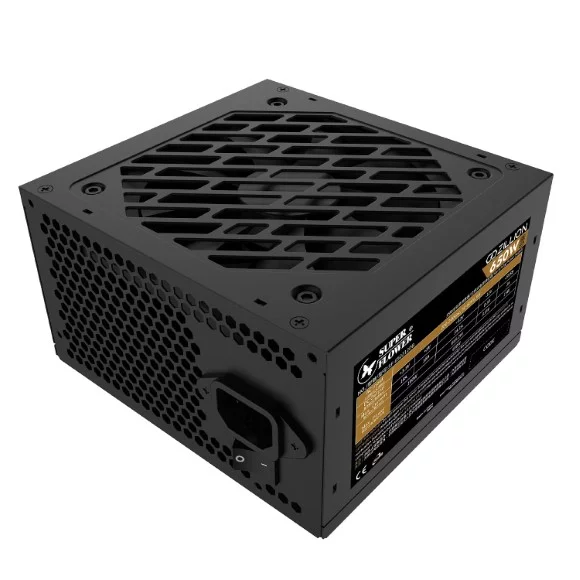

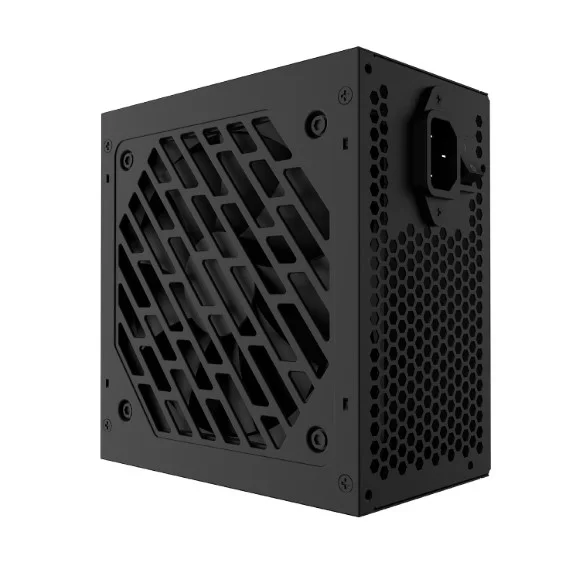

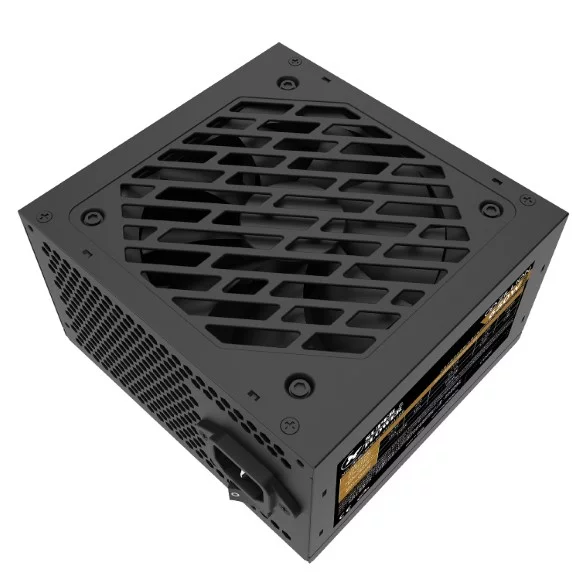

Super Flower Zillion 650W 80+ Bronze PSU
★Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards.
★Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
★80 PLUS® Bronze Certified, 85% 88% 85% Efficiency At 20% 50% 100% Rated Load.
★Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
★Comply With ATX 12V v2.3, EPS 12V v2.92 Specification.
★PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.
★OVP / OCP / OTP / SCP / OPP / NLP
★All Flat Cables.
★DC-DC Platform for higher stability.
★105°C Taiwanese Main Capacitor.
Super Flower Zillion 650W 80+ Bronze PSU Specification
| Model | Zillion Bronze 650W | |
| Wattage | 650W | |
| Efficiency | 20%: 85% ; 50% : 88% ; 100% : 85% (230V EU Internal Bronze) | |
| Intel Power Design Guide | ATX 12V v2.3, EPS 12V v2.92 Specification. | |
| AC Input / Frequency | 200V~240V | 50-60Hz | |
| Fan Size | 120mm Sleeve Fan | |
| Dimension | 140mm(L) x 150mm(W) x 86mm(H) | |
| Protection | OVP / OCP / OTP / SCP / OPP/ NLP | |
| Safety | TÜV / CB / CE / RoHS | |
| Weight | Around 1.5 KG | |
| Cable Spec | ||
| 20+4Pin | Fixed Cables | 1 (500 mm) |
| 8Pin & (4+4Pin) CPU | 1 (600mm+150mm) | |
| PCI (PCI 6+2pin) | 1 (500mm) | |
| SLI (2 x PCI 6+2pin) | 1 (500mm+150mm) | |
| 3SATA + 1PATA | 2 (450mm+150mm+150mm+150mm) | |
| model no.: SF-650Z12DB | ||||||
| AC INPUT | 200-240V~ 6A 50-60Hz | |||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | 5VSB | |
| 650W | Max Output Current | 18A | 18A | 54.1A | 0.3A | 3A |
| Max Combined Wattage | 100W | 649.2W | 3.6W | 15W | ||
| 650W | ||||||
