Description:
Warranty: 1 year
- Supports 11th/10th Gen Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 8-Channel HD Audio with High Quality Audio Capacitors
- NVMe PCIe Gen3 x4 2280 M.2 Connector
- GbE LAN with Bandwidth Management
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design

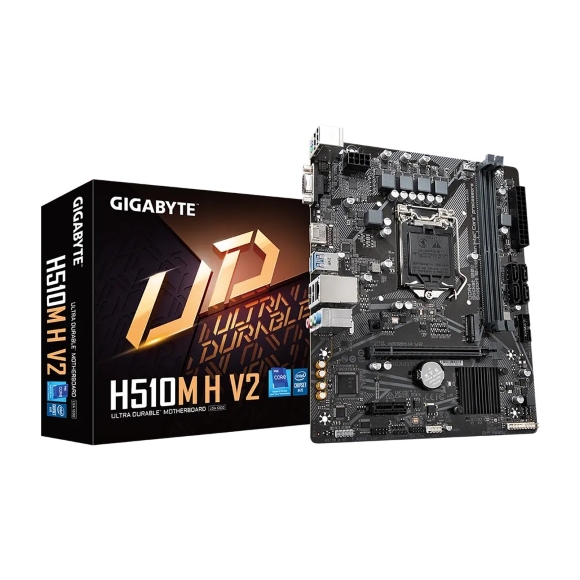

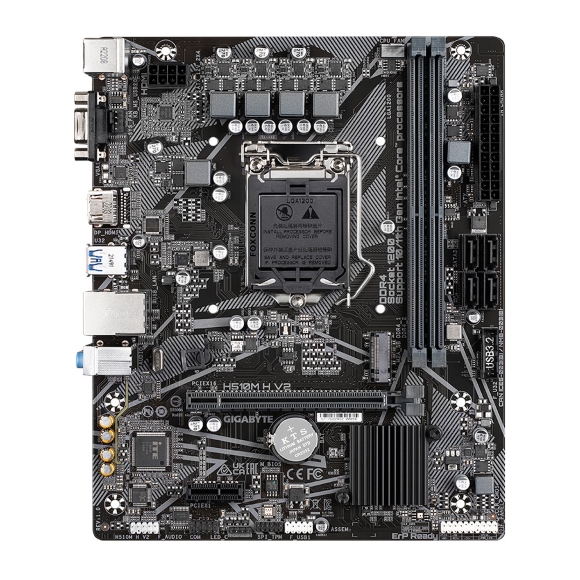

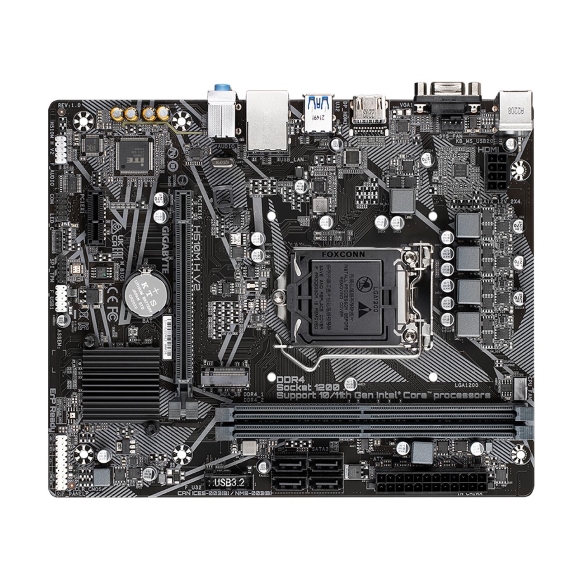

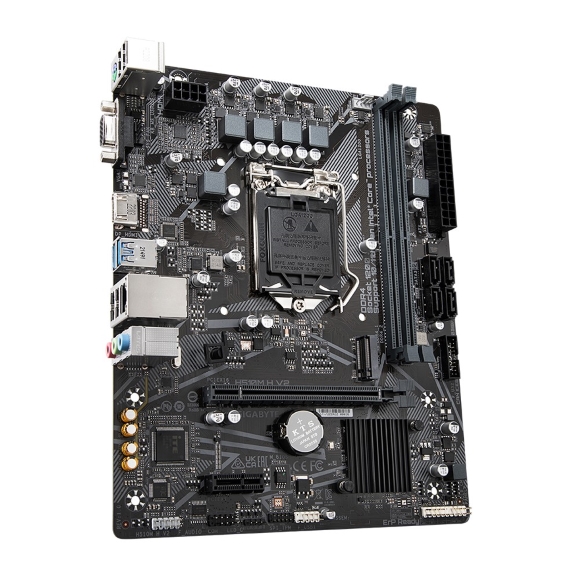

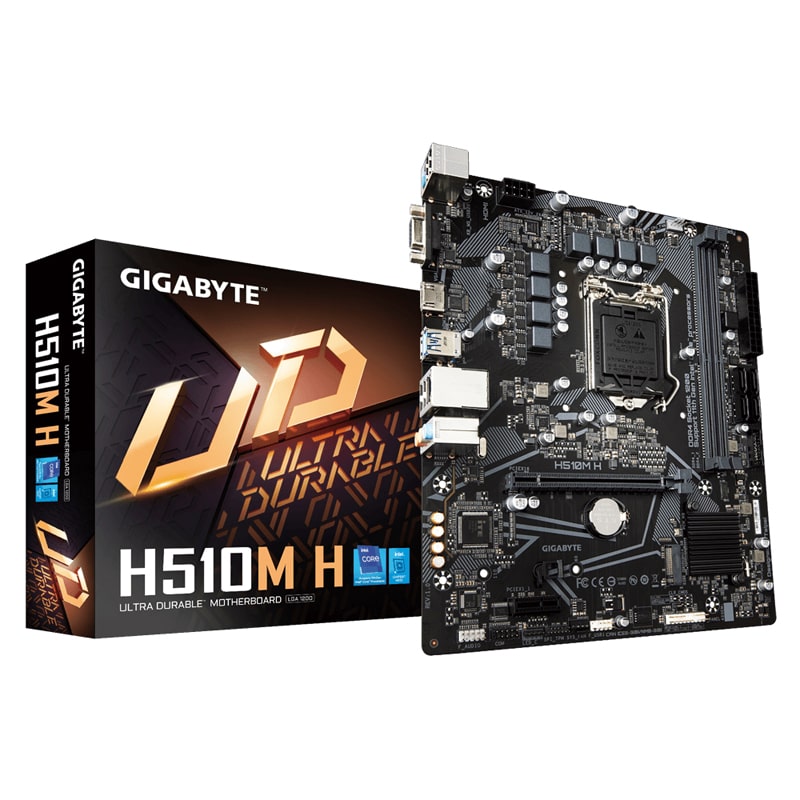

GIGABYTE MB H510M H V2 DDR4 Intel® Ultra Durable Motherboard with GbE LAN, Anti-Sulfur Resistor
| Brand | Gigabyte |
| Model | H510M H V2 (rev. 1.0) |
| Chipset | Intel H470 Express Chipset |
| Socket | Intel LGA1200 |
| CPU Support | 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors |
| 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors | |
| L3 cache varies with CPU | |
| Memory Support | Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules |
| Support for DDR4 2933/2666/2400/2133 MHz memory modules | |
| Support for DDR4 2666/2400/2133 MHz memory modules | |
| DIMM Slots | 2 |
| Max Memory | Up to 64 GB |
| Expansion Slots | CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 | |
| Chipset: | |
| 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 | |
| Storage Interface | Chipset: |
| 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) | |
| 4 x SATA 6Gb/s connectors | |
| Raid Support | RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices |
| RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices | |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: |
| 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz | |
| 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz | |
| Audio | Realtek® Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| USB | Chipset: |
| 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x system fan header | |
| 1 x RGB LED strip header | |
| 1 x M.2 Socket 3 connector | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 1 x USB 2.0/1.1 header | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1 x serial port header | |
| 1 x Clear CMOS jumper | |

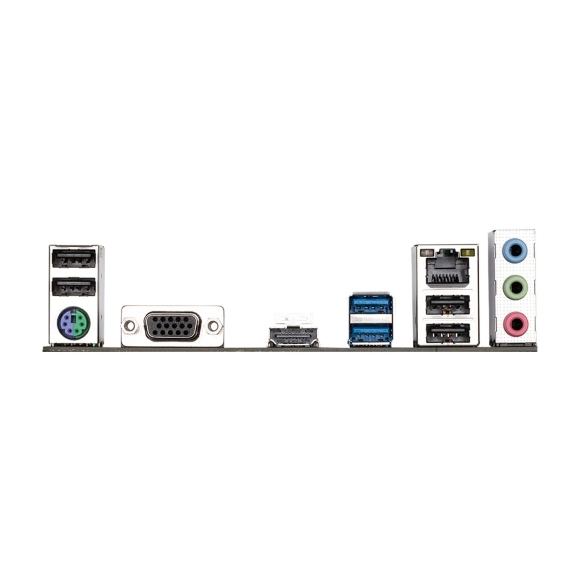

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port |
| 1 x D-Sub port | |
| 1 x HDMI port | |
| 2 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Fan fail warning | |
| Fan speed control | |
| BIOS | 1 x 128 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for APP Center |
| Support for Q-Flash | |
| Support for Xpress Install | |
| Bundled Software | Norton Internet Security (OEM version) |
| LAN bandwidth management software | |
| Operating System | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit | |
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
