Description:
Warranty: 1 year

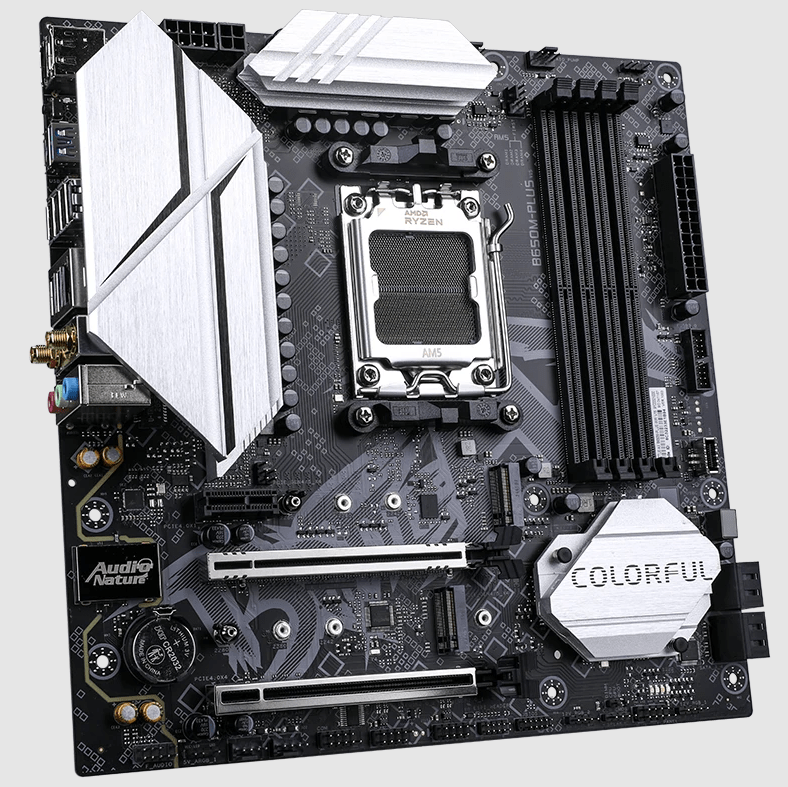

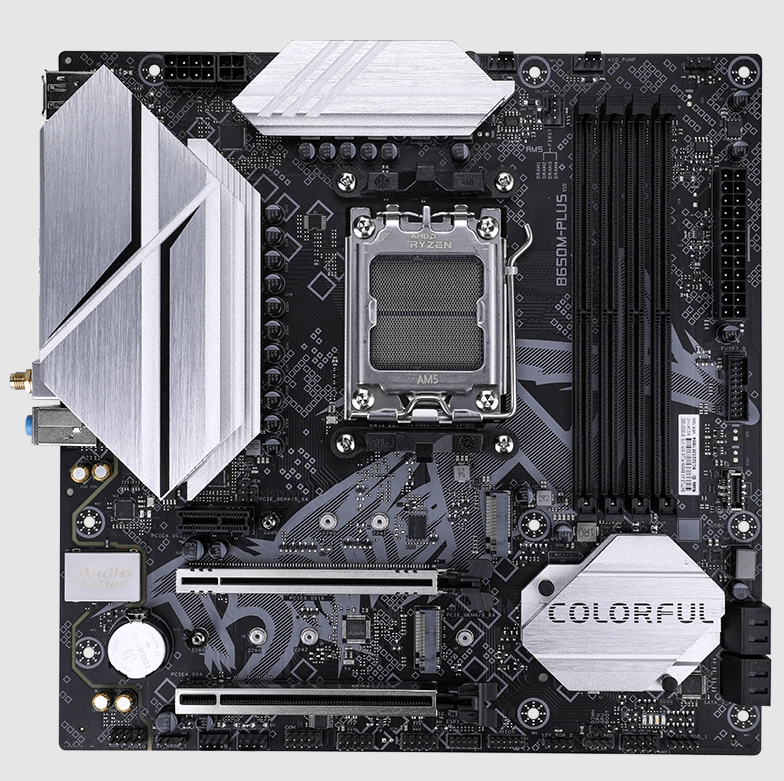

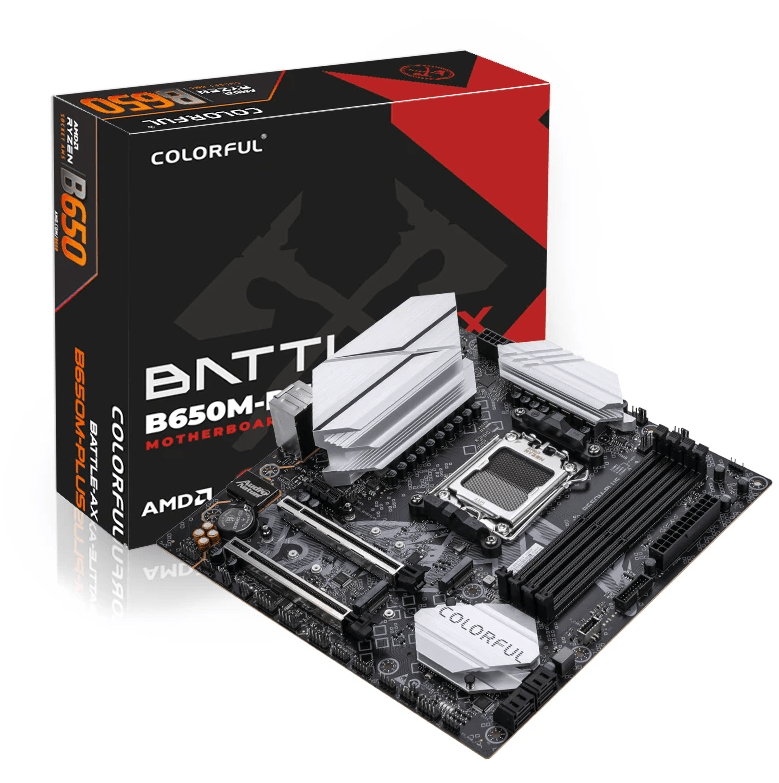

| Product Model | BATTLE-AX B650M-PLUS WIFI V15 |
|---|---|
| Product range | Tomahawk Series |
| Chipset | AMD B650 |
| CPU Support | Supports Ryzen 7000 series, 8000 series, and 9000 series processors that are compatible with the motherboard AM5 socket (*Please visit Colorful’s official website www.colorful.cn to check the latest processor support list) |
| Memory support | Provides 4 DDR5 memory slots, supporting up to 192 GB memory (single slot supports up to 48 GB capacity) -Supports DDR5-6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800MHz memory -Supports Extreme Memory Profile (XMP) memory technology -Supports EXtended Profiles for Overclocking (EXPO) memory technology -Supports dual-channel memory technology (*Please visit Colorful’s official website www.colorful.cn for the latest memory compatibility list) |
| Storage Interface | Supports 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces in total, supports creating RAID 0, RAID 1, RAID 10 disk arrays with SATA or M.2 NVMe hard disk devices -M.2_1 slot: supports 2242/2260/2280 specification M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) -M.2_2 slot: supports 2242/2260/2280 specification M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) (*Whether PCIe 5.0 is supported depends on the CPU of the motherboard) |

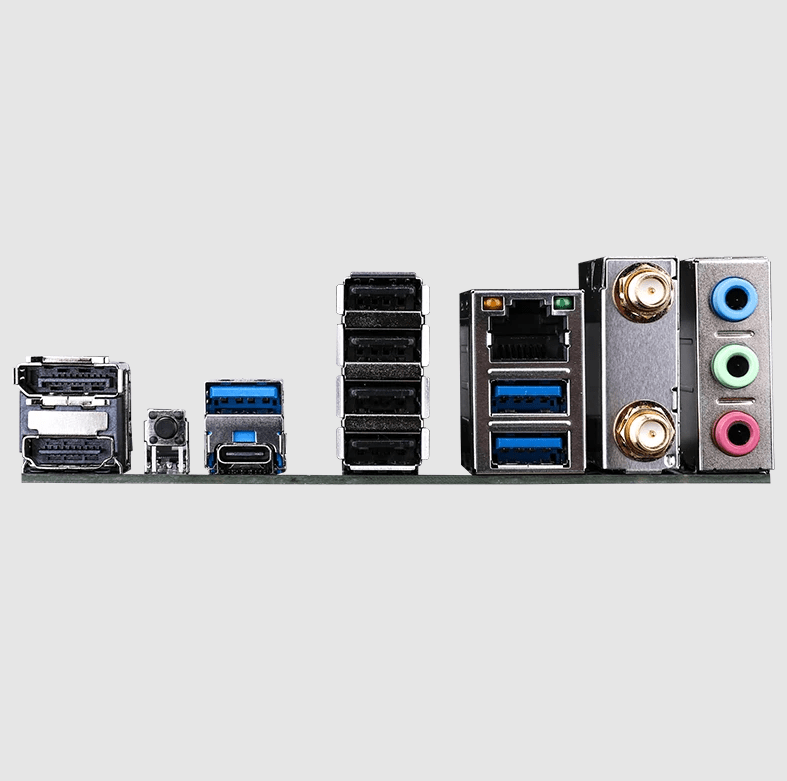

| Extension interface | Rear I/O interface: – 4 USB 2.0 ports – 2 USB 3.2 Gen 1 Type-A ports – 1 USB 3.2 Gen 2 Type-A port – 1 USB 3.2 Gen 1 Type-C port -1 DP 1.2 port, supports up to 4K Hz resolution -1 HDMI 1.4 port, supports up to 4K Hz resolution -1 2.5G network port -2 Wi-Fi 6 antenna ports -1 BIOS update button -3 audio ports (audio input/audio output/microphone) Onboard device interface: -1 CPU fan pin -3 system fan pins -1 water cooling pump pin -2 USB 2.0 pins, expandable 4 USB 2.0 Type-A ports -1 USB 3.2 Gen 1 pin, expandable 2 USB 3.2 Gen 1 Type-A ports -1 USB 3.2 Gen 1 Type-C slot, expandable 1 USB 3.2 Gen 1 Type-C port – 2 5V 3-pin ARGB pins – 2 12V 4-pin RGB pins – 1 front audio pin – 1 front panel pin – 1 speaker pin – 1 serial port pin – 1 clear CMOS jumper – 1 BIOS burner pin – 1 diagnostic card pin |
| Expansion slots | 1 PCIe 5.0 x16 slot 1 PCIe x16 slot (supports PCIe 4.0 x4 specifications) 1 PCIe 4.0 x1 slot |
| System BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3, S4, network S5 wake-up; support scheduled startup and call startup |
| Hardware Monitoring | CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring |
| Onboard NIC | RTL8125BG 2.5 Gbit network card, AX200 WiFi 6 wireless network card, Bluetooth 5.2 |
| Onboard sound card | Realtek ALC897 high-fidelity decoding chip, supports 5.1 channels |
| Motherboard Specifications | M-ATX form factor 245 mm x 245mm |
