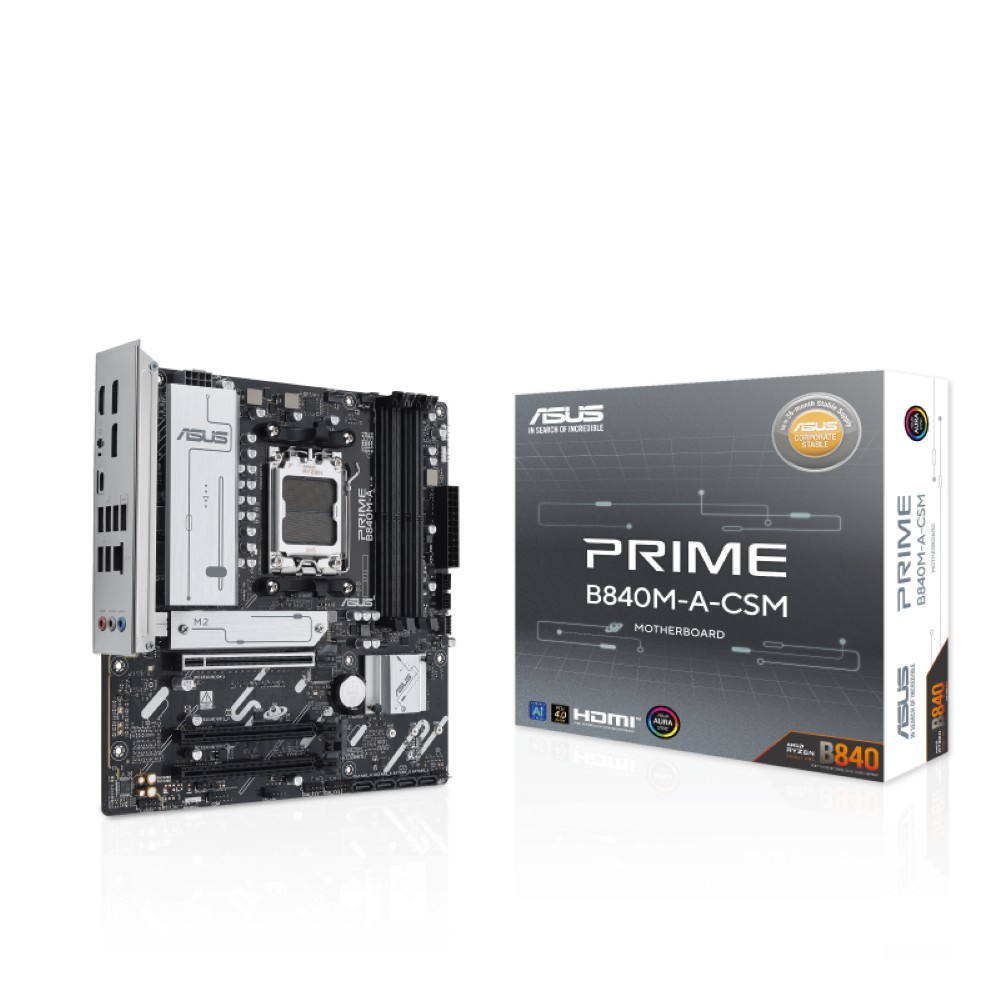

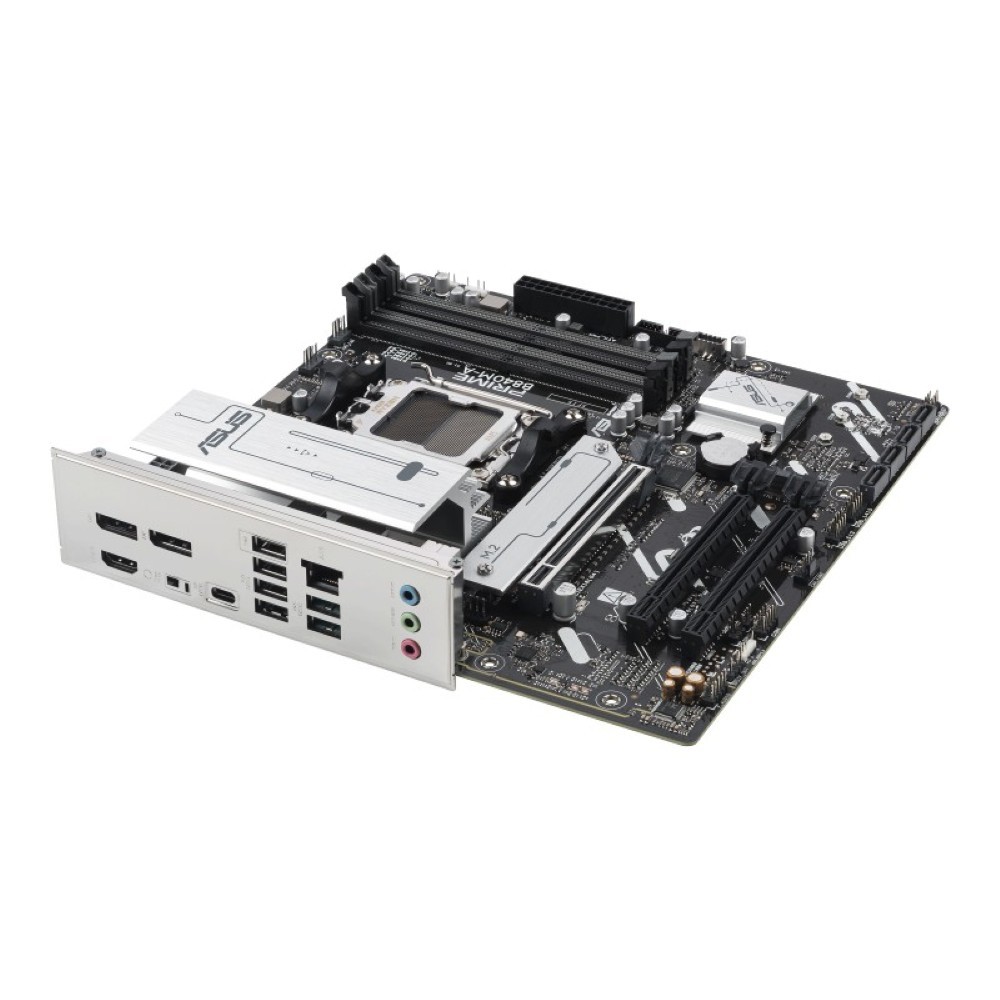

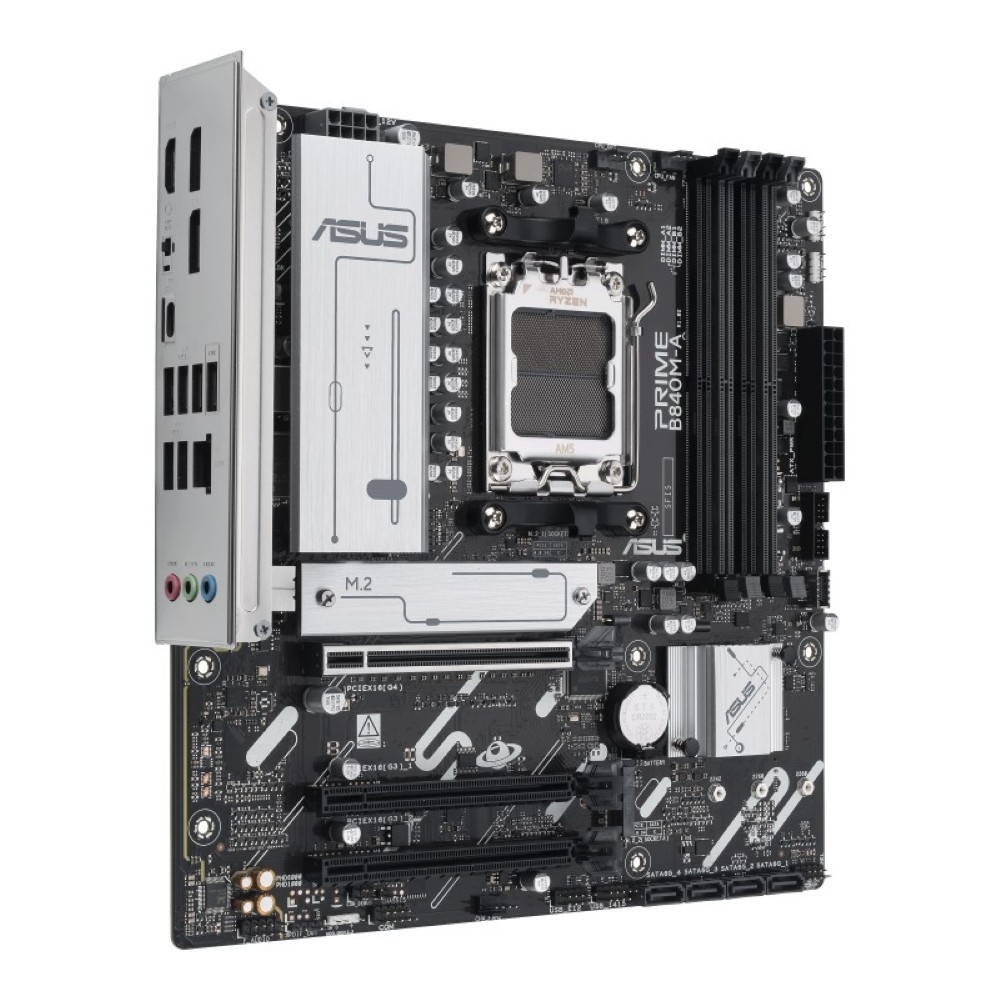

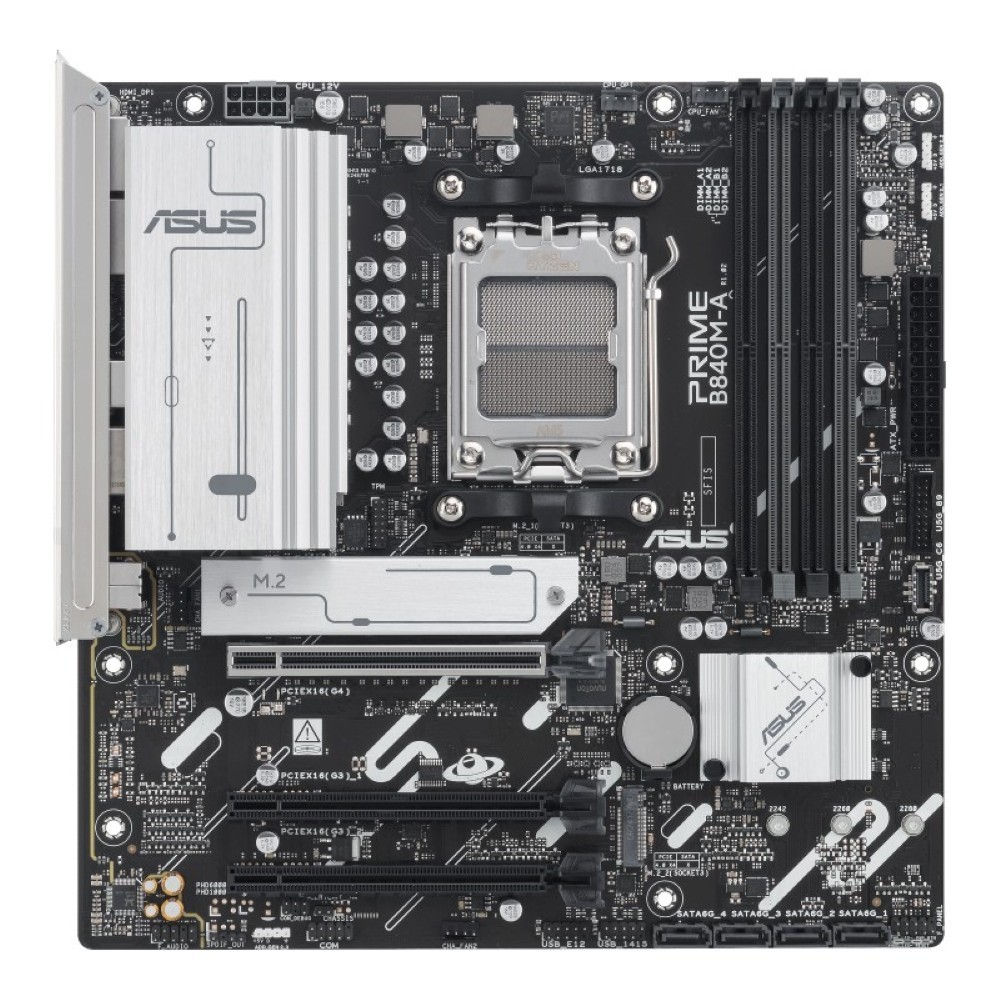

ASUS PRIME B840M-A WIFI-CSM AM5 M-ATX Motherboard

Name: ASUS PRIME B840M-A WIFI-CSM AM5 M-ATX Motherboard
Brand: Asus
SKU: 41615
Price: 62000.00 PKR
Availability: InStock

₨62,000.00

Available in stock

Description:

Warranty: 1 year

Key Specs

Chipset	AMD B840
CPU Socket	AM5
Memory Slots	4x 288-Pin
Memory Support	DDR5 7600 MT/s
Storage Slots	1x M.2 (M Key) 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2280 (PCIe 3.0 x4)
Expansion Slots	1x PCIe 4.0 x16 1x PCIe 4.0 x16 (x8 mode) 2x PCIe 3.0 x16 (x1 mode)
Wi-Fi	Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor	Micro-ATX

CPU

Chipset	AMD B840
CPU Socket	AM5

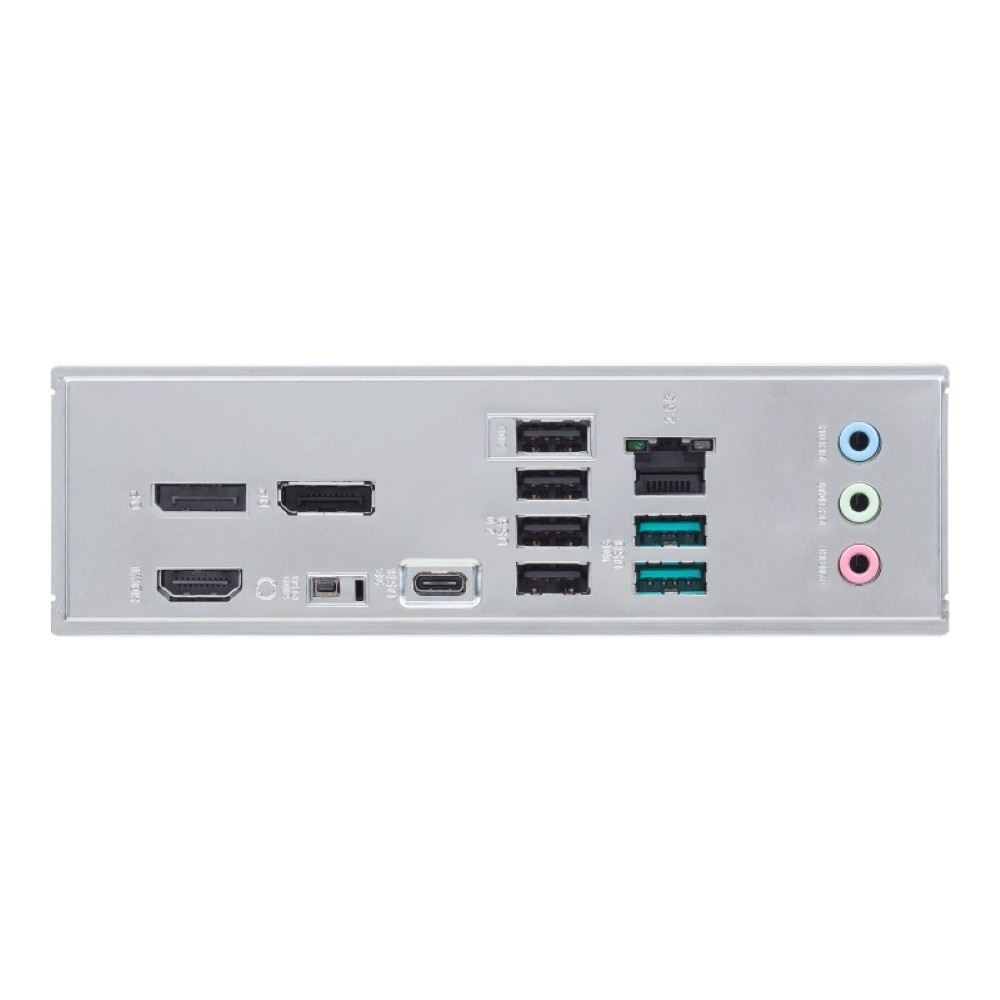

Back Panel I/O

USB	2x USB-A (USB 3.1/3.2 Gen 2) 1x USB-C (USB 3.0 / 3.1/3.2 Gen 1) 4x USB-A (USB 2.0)
Thunderbolt	No
Display	1x HDMI 2.1 2x DisplayPort 1.4
Audio	3x 1/8″ / 3.5 mm
Ethernet / Controller	1x Realtek 2.5Gigabit
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback

Memory

Storage Expansion

SATA	4x SATA III
Storage Slots	1x M.2 (M Key) 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2280 (PCIe 3.0 x4)
Optane Memory Support	No
RAID Support	RAID 0, 1, 5, 10

Internal I/O

Expansion Slots	1x PCIe 4.0 x16 1x PCIe 4.0 x16 (x8 mode) 2x PCIe 3.0 x16 (x1 mode)
USB	1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling	2x 4-Pin CPU 3x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 1x 8-Pin CPU
Security	TPM Header
LED Header	3x RGB
Audio	1x Speaker 1x S/PDIF
Diagnostics	Clear CMOS, Flash BIOS
Legacy	1x Serial
