Description:Â
Warranty: 1 year
- ATX 12V v2.31
- Non-Modular
- 80 PLUS BRONZE Certified
- 100 – 240 V 50/60 Hz
- +3.3V@18A, +5V@15A, [email protected], [email protected], +5VSB@3A

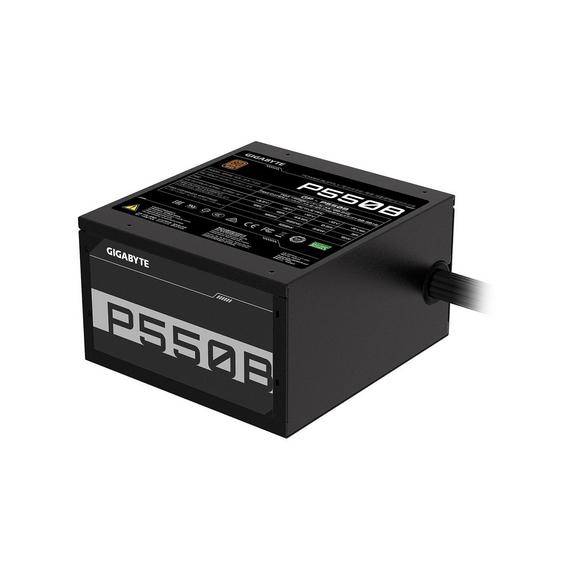

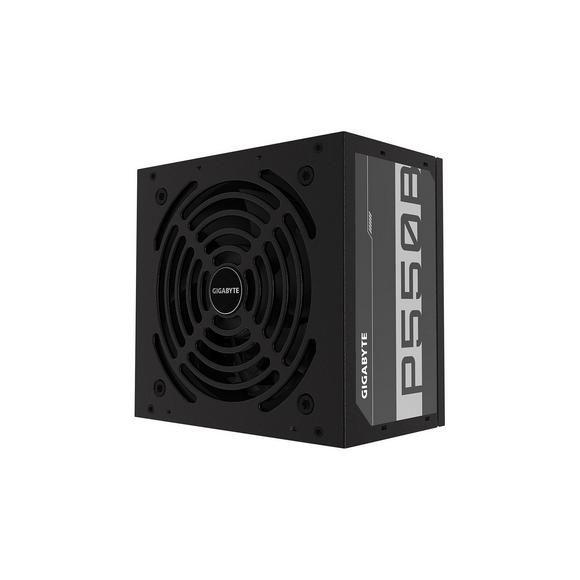

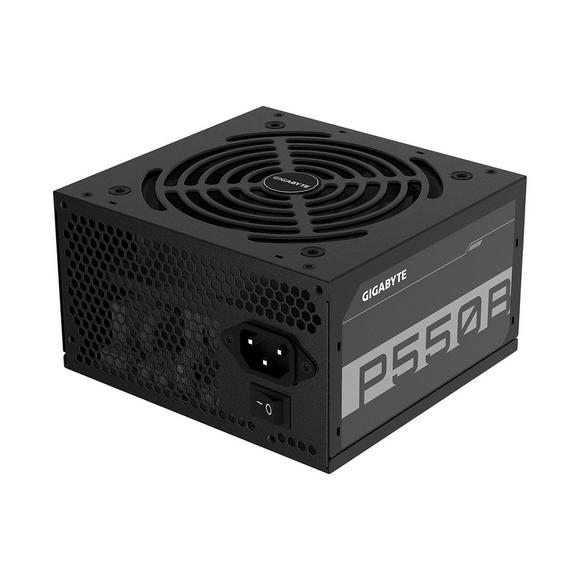

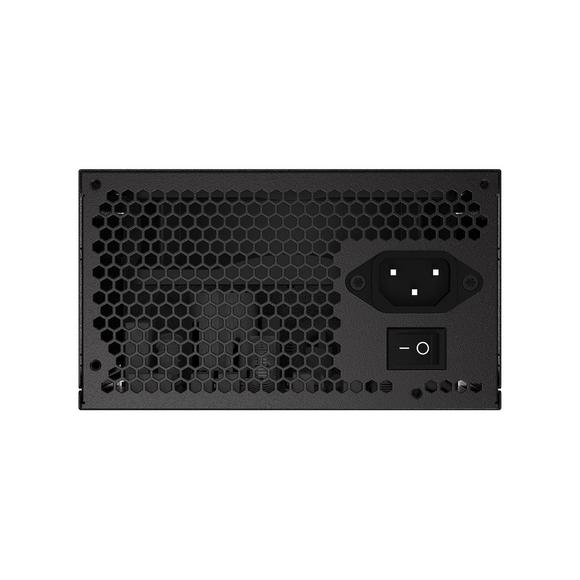

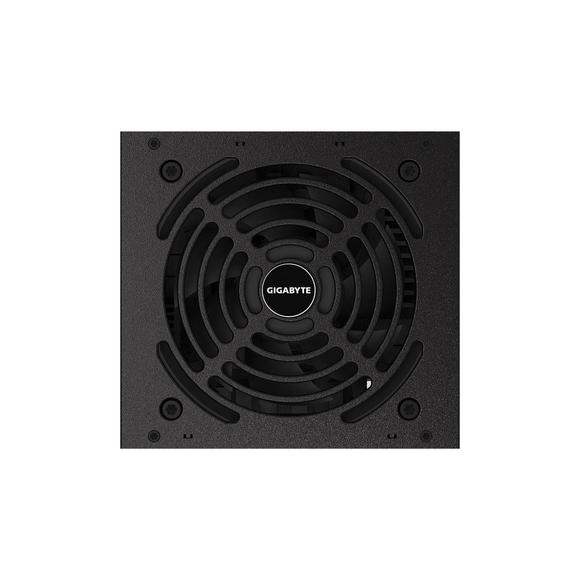

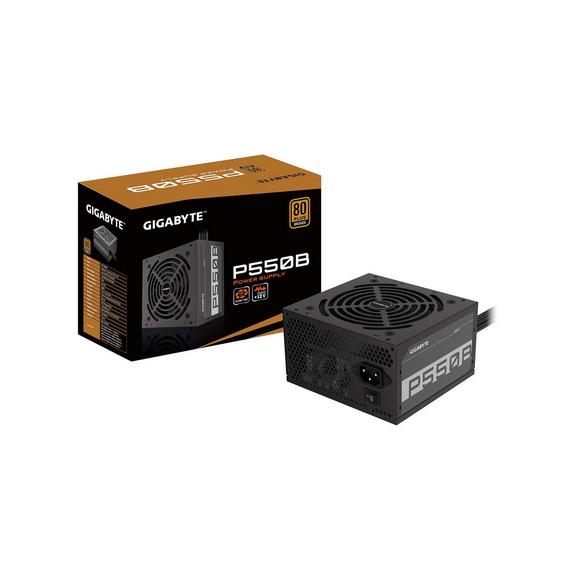

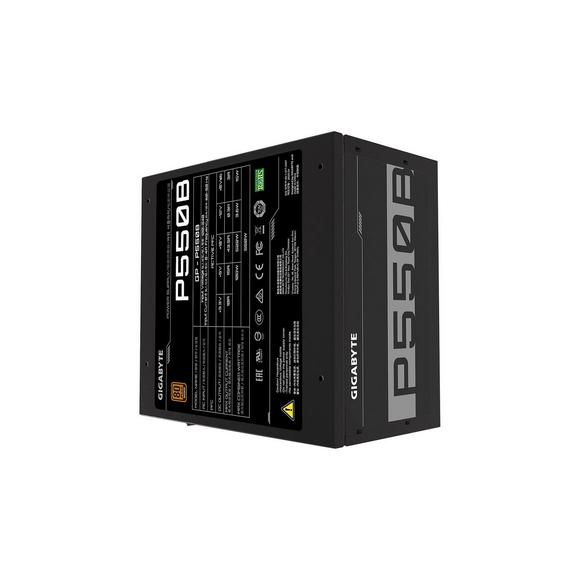

GIGABYTE GP-P550B 550 W ATX 12V v2.31 80 PLUS BRONZE Certified Non-Modular Active PFC Power Supply
| Brand | GIGABYTE |
|---|---|
| Model | GP-P550B |
| Type | ATX 12V v2.31 |
|---|---|
| Maximum Power | 550 W |
| Fans | 1 x 120mm Silent Hydraulic Bearing (HYB) Fan |
| PFCÂ | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 2 x 6+2-Pin |
| SATA Power Connector | 6 |
| Modular | Non-Modular |
| Power Good Signal | 100-500ms |
| Hold-up Time | 16ms min. |
| Efficiency | 85% at typical load |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Protection | OVP / OPP / SCP / UVP / OCP / OTP |
| Input Voltage | 100 – 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 8 – 4 A |
| Output | +3.3V@18A, +5V@15A, [email protected], [email protected], +5VSB@3A |
| MTBFÂ | >100,000 Hours |
| Max PSU Length | 140 mm |
| Connectors | 1 x ATX/MB 20+4 Pin 1 x CPU/EPS 4+4 Pin 2 x PCI-e 6+2 Pin 6 x SATA 4 x Peripheral 4 Pin 1 x Floppy |
| Features | 80 PLUS Bronze certified 120mm Silent Hydraulic Bearing (HYB) Fan Reliable flat cable Single +12V rail OVP/OPP/SCP/UVP/OCP/OTP protection 3 years warranty (Adjusted according to different regions) |
|---|
| Dimensions | 3.39″ x 5.91″ x 5.51″ |
|---|
| PFC | No |
|---|---|
| SLI | No |
| CrossFire | No |
| SATA Power Connector | 3 |
|---|
